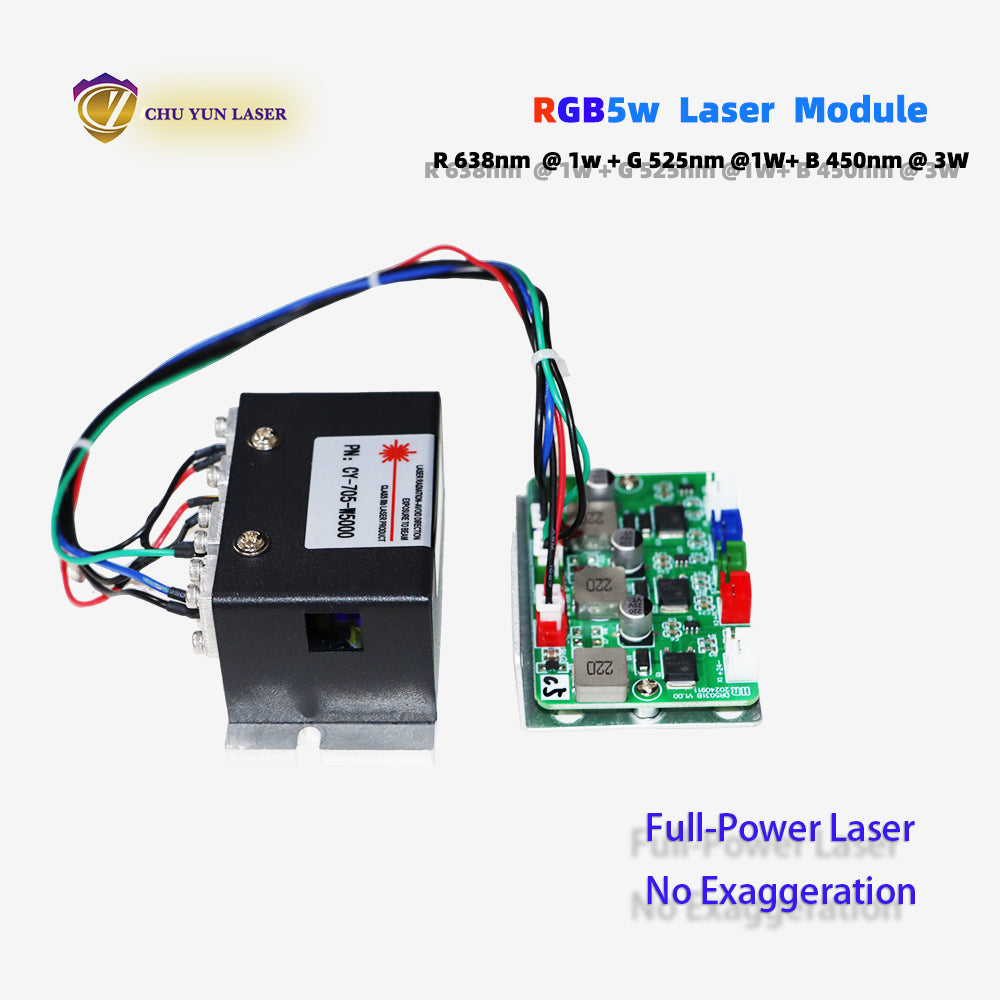

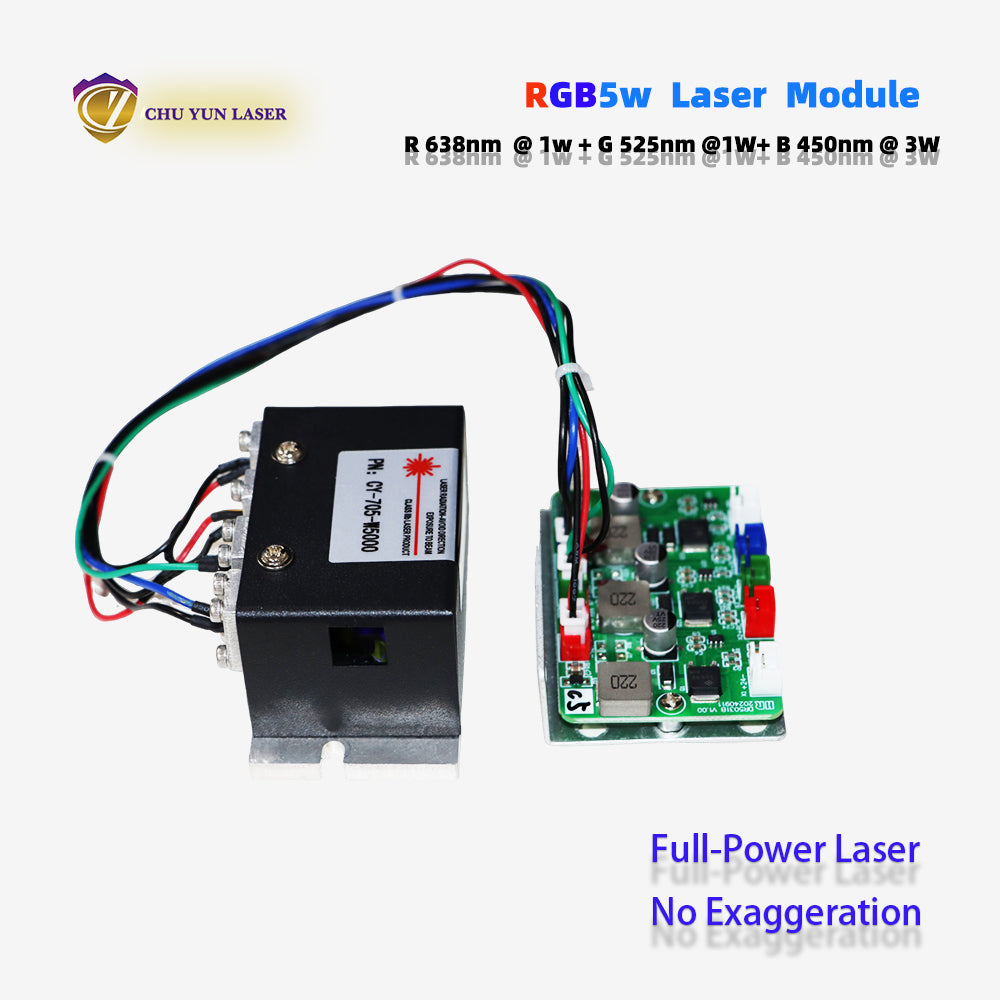

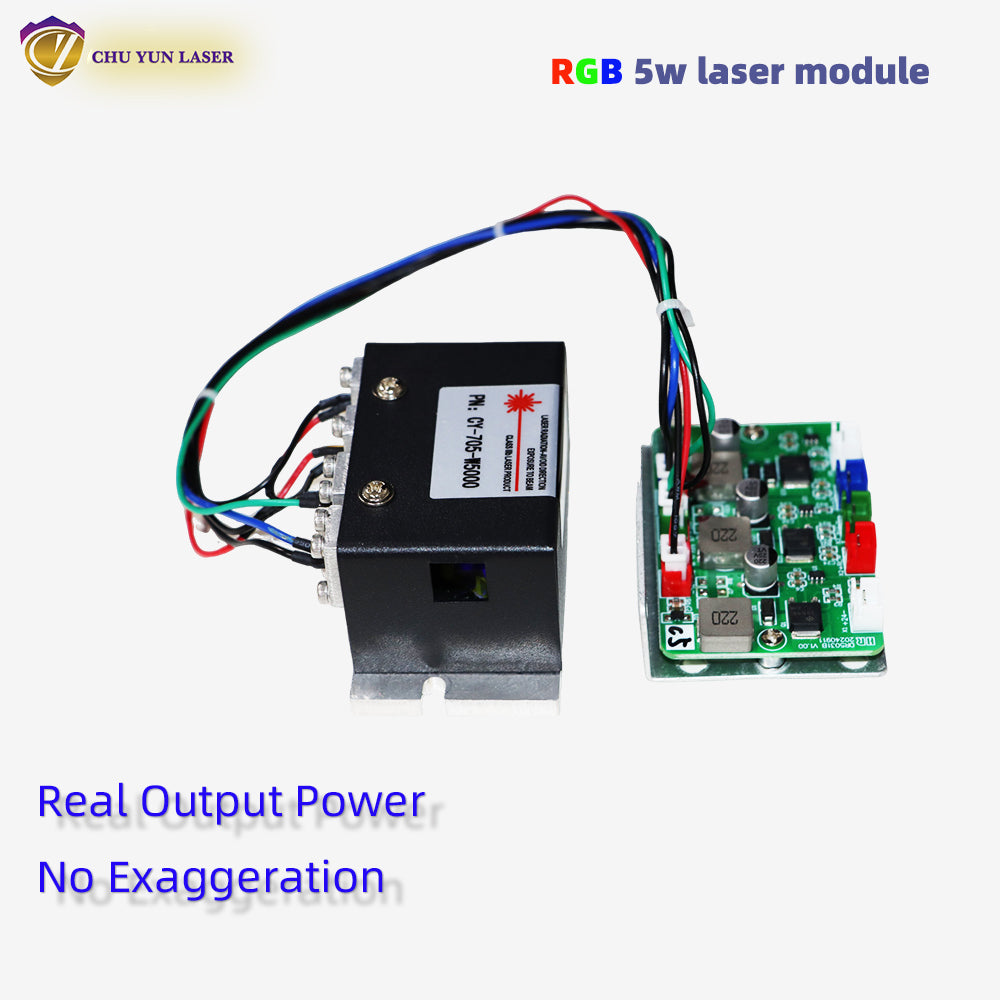

705-rgb5w DC12V 5w laser module with ttl & analogue modulation for stage light parts

Features:

705-rgb5w DC12V 5w laser module with ttl & analogue modulation for stage light parts

Specifications :

                                                              R         G          B

Wavelength (nm)   ：                        638±5   525±5   450±5

Output power (W)    ：                          1         1         3

Beam diameter at the aperture (mm) ： 1.5×6     2×6   2×6

Beam divergence, full angle (mrad)   ：  <1.5      <1.5    <1.5

Operating mode :   CW

Power stability     ：   <5%

Modulation ：    TTL/Analog

Warm-up time (minutes) ﹤5

Operating temperature (℃) -10～40

Cooling mode  ：  Fan

Expected lifetime ：10000 hours
