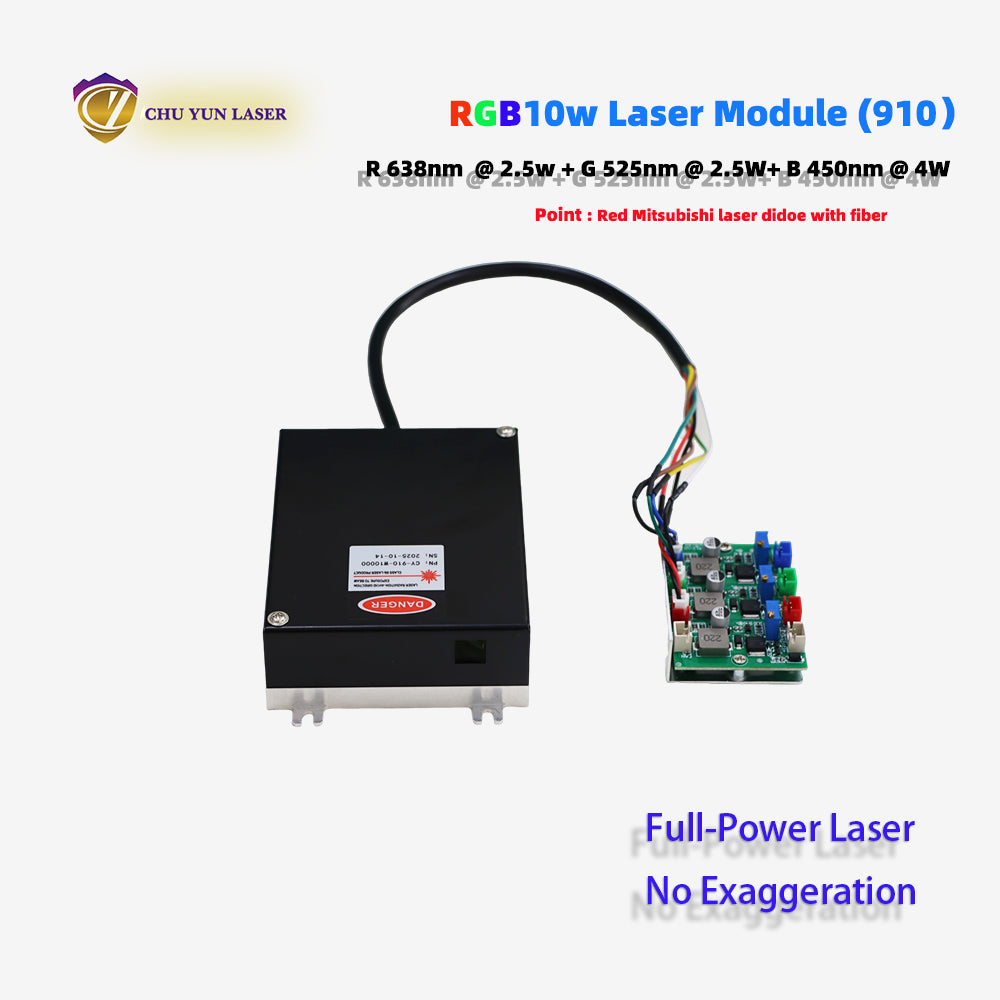

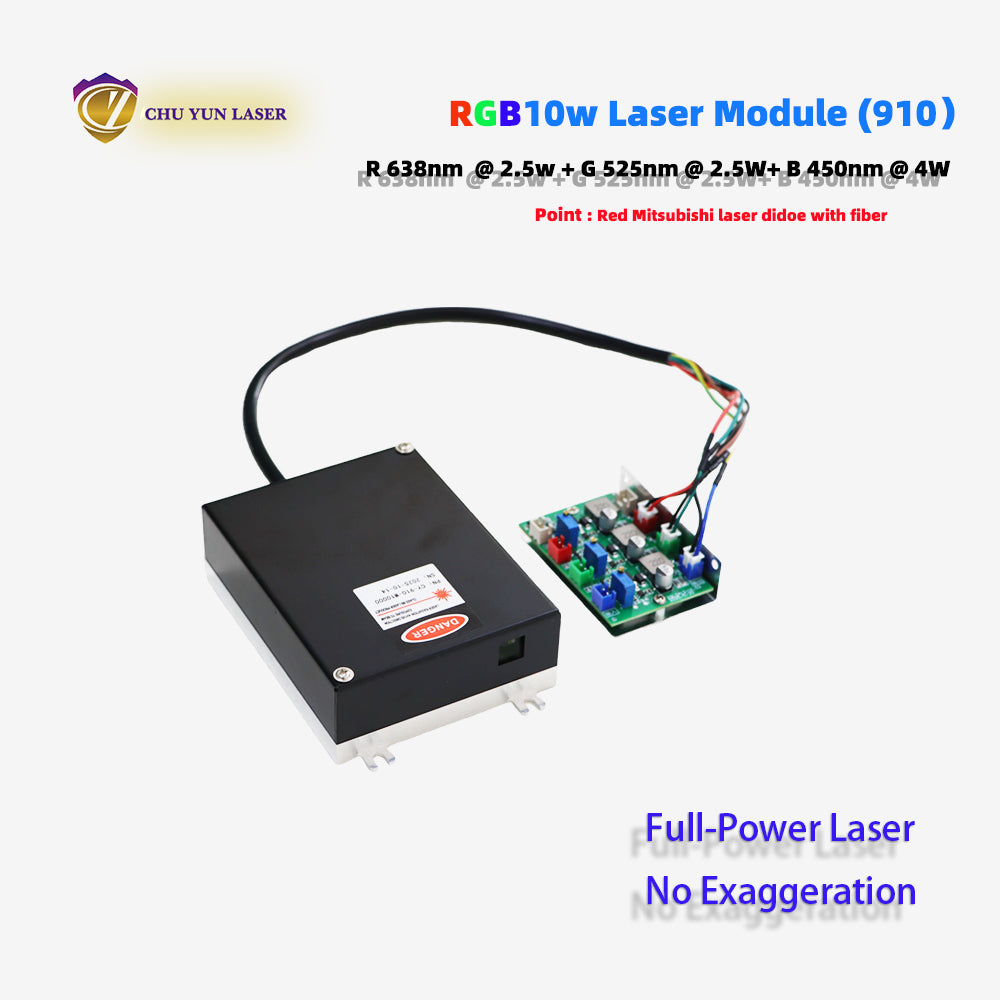

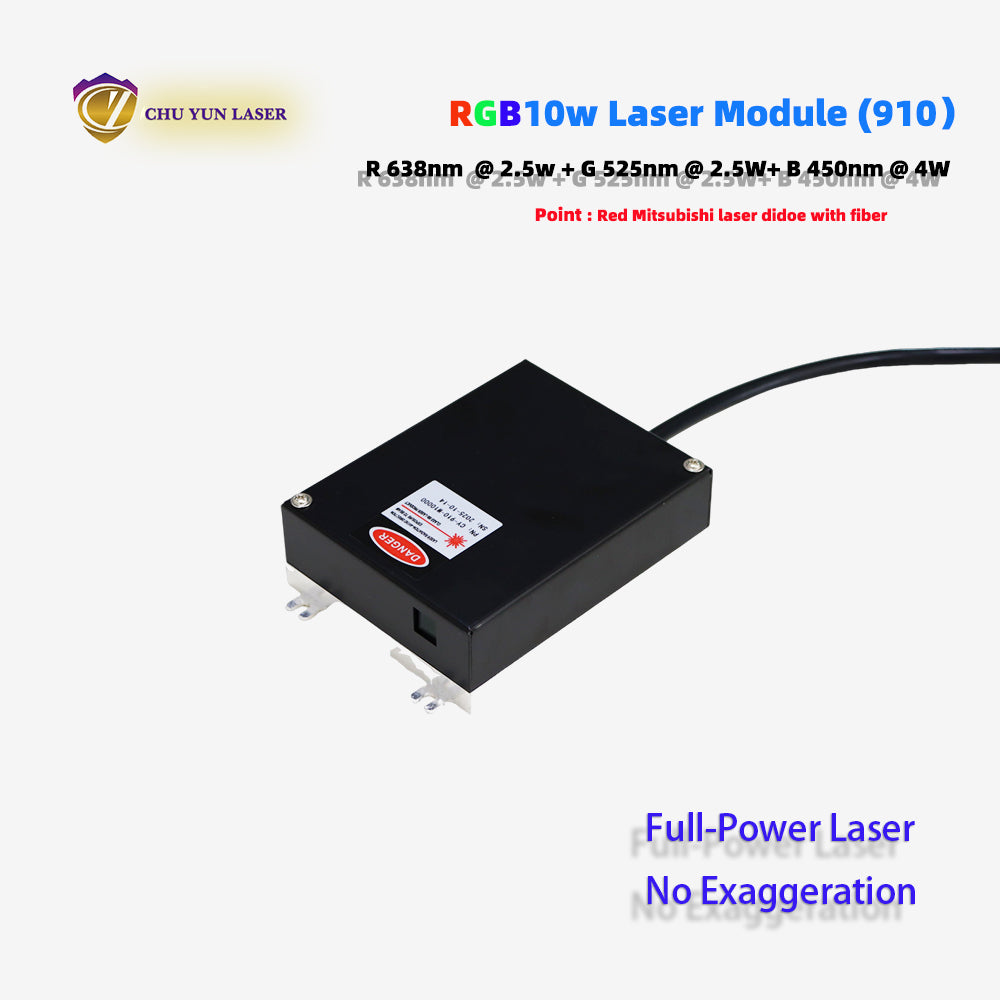

910-rgb10w 10w laser module with ttl & analogue modulation with tec cooling for laser projector laser source

Features:

    910-rgb10w 10w laser module with ttl & analogue modulation with tec cooling for laser projector laser source

Specifications :

                                                              R         G          B

Wavelength (nm)   ：                        638±5   525±5   450±5

Output power (W)    ：                         2.5        2.5        4.0

Beam diameter at the aperture (mm) ： 4×6     2×6   2×6

Beam divergence, full angle (mrad)   ：  <1.5

Operating mode :   CW

Power stability     ：   <5%

Modulation ：    TTL/Analog

Warm-up time (minutes) ﹤5

Operating temperature (℃) -10～40

Cooling mode  ：  Fan

Expected lifetime ：10000 hours

Why the laser needs tec cooling , its more good for cooling and more long lift-time .

All our laser module accepted customized ， feel free contact with us !

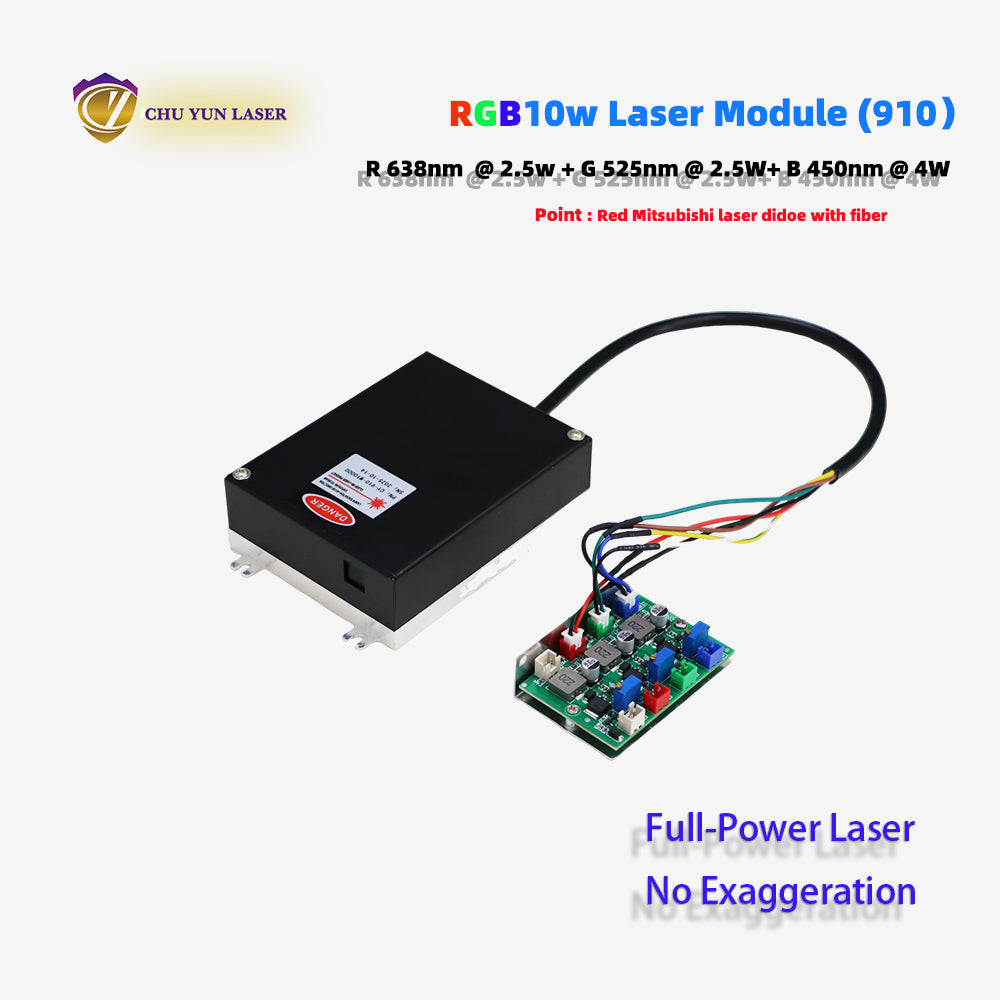

Packing List :

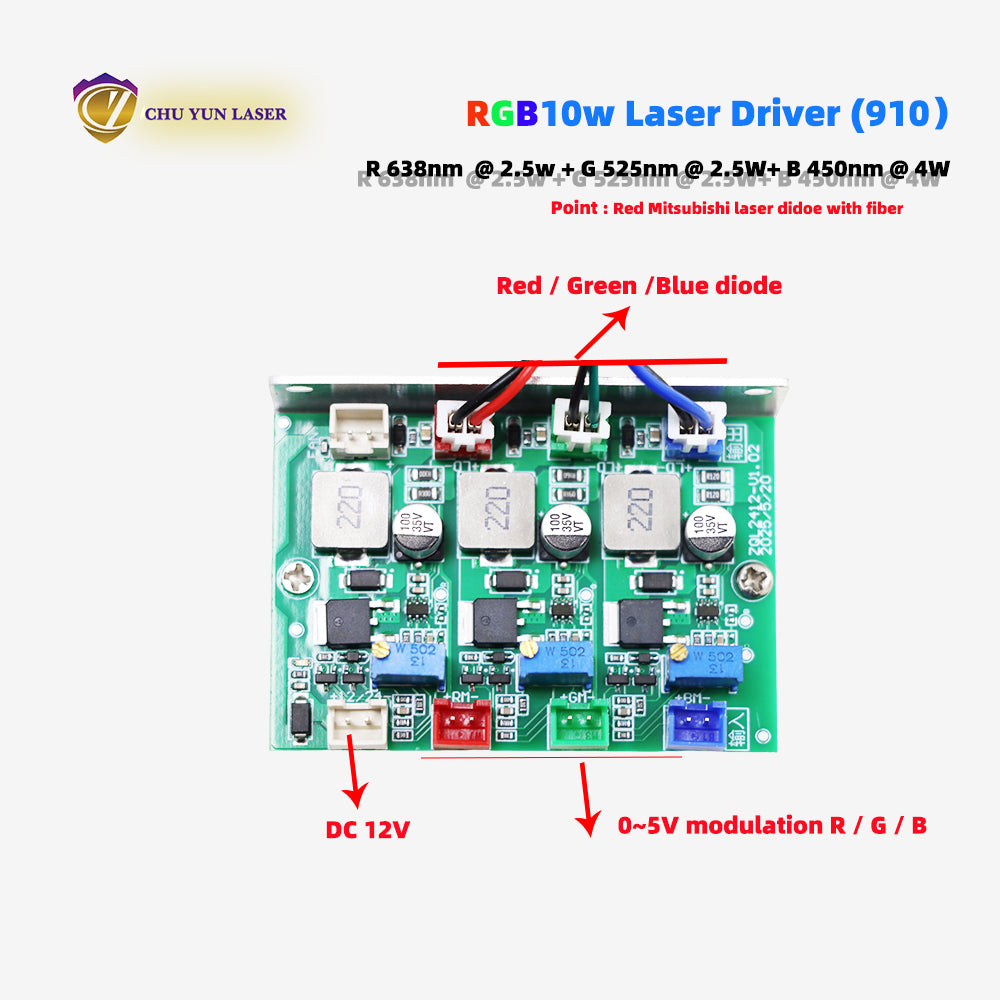

1. laser head + drive * 1 pc s

2. Modualtion Line : 3 pcs

3. Driver Line : 3 pcs

Accepted customized, any ideas for laser , let me know!
