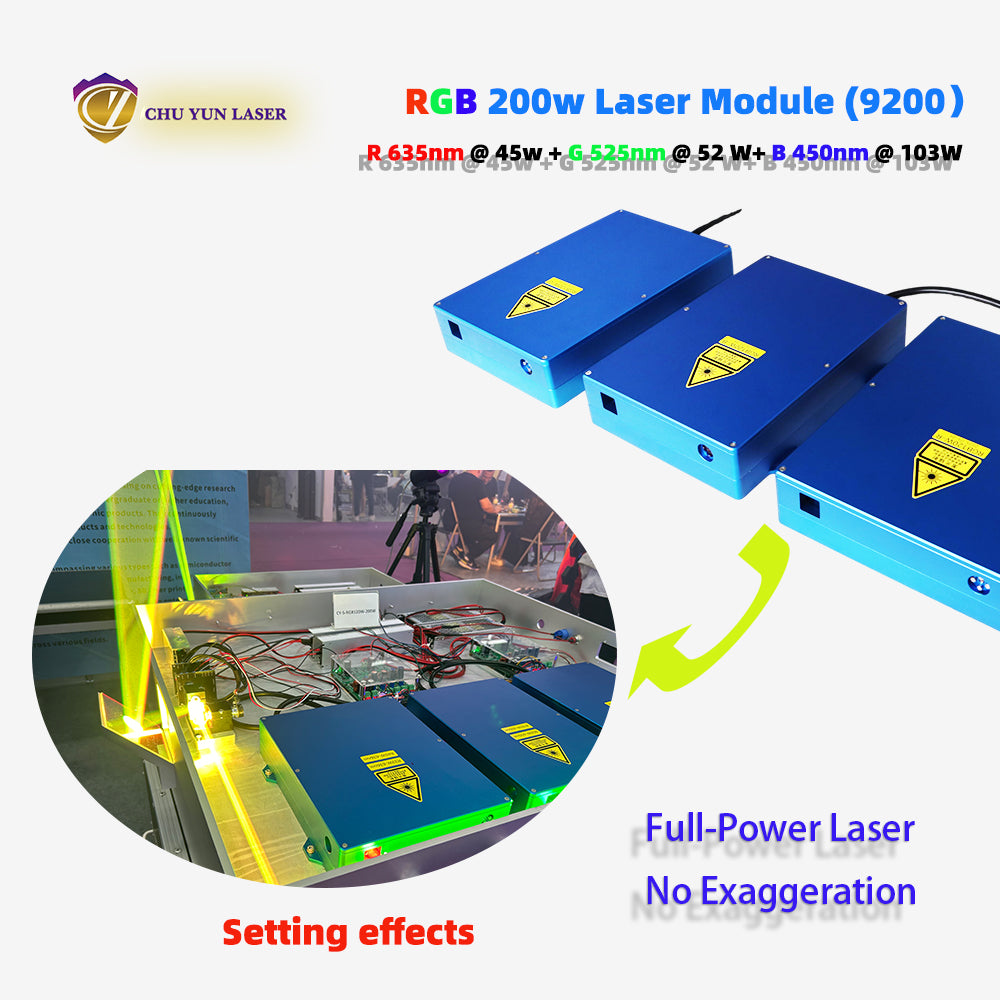

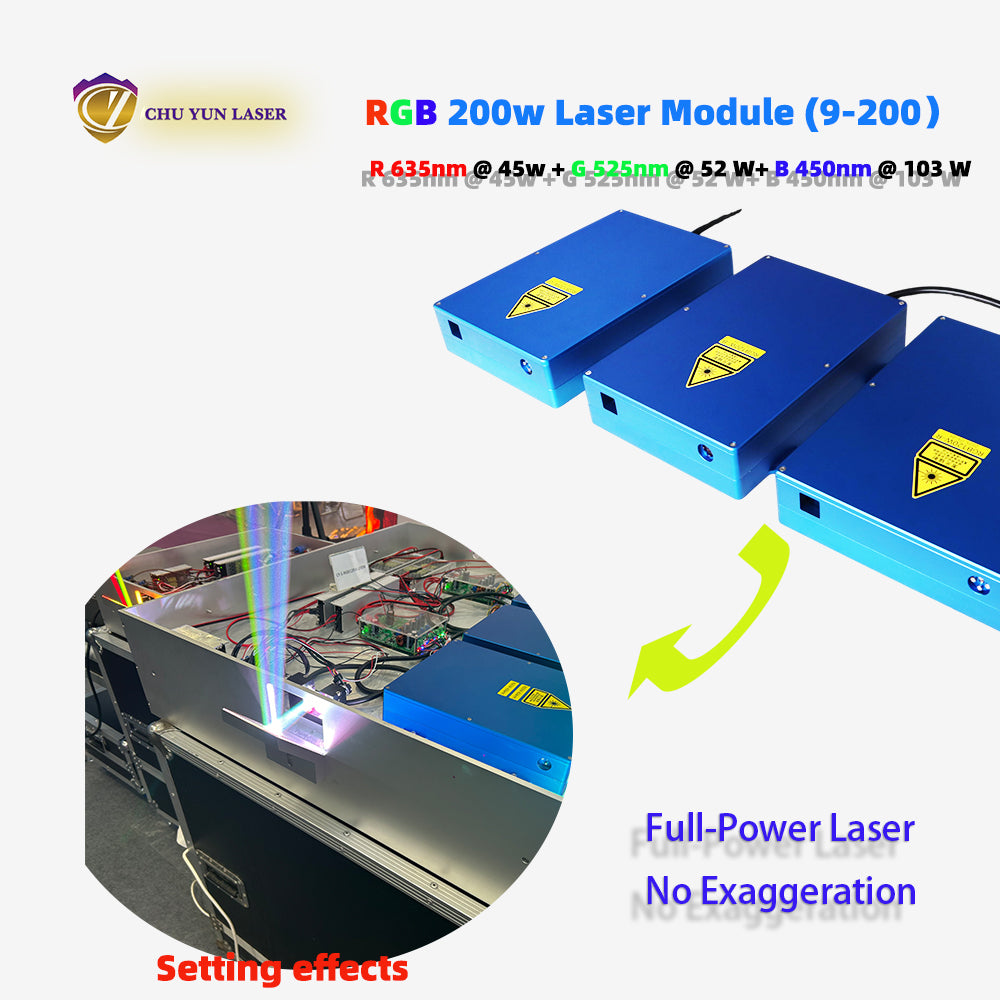

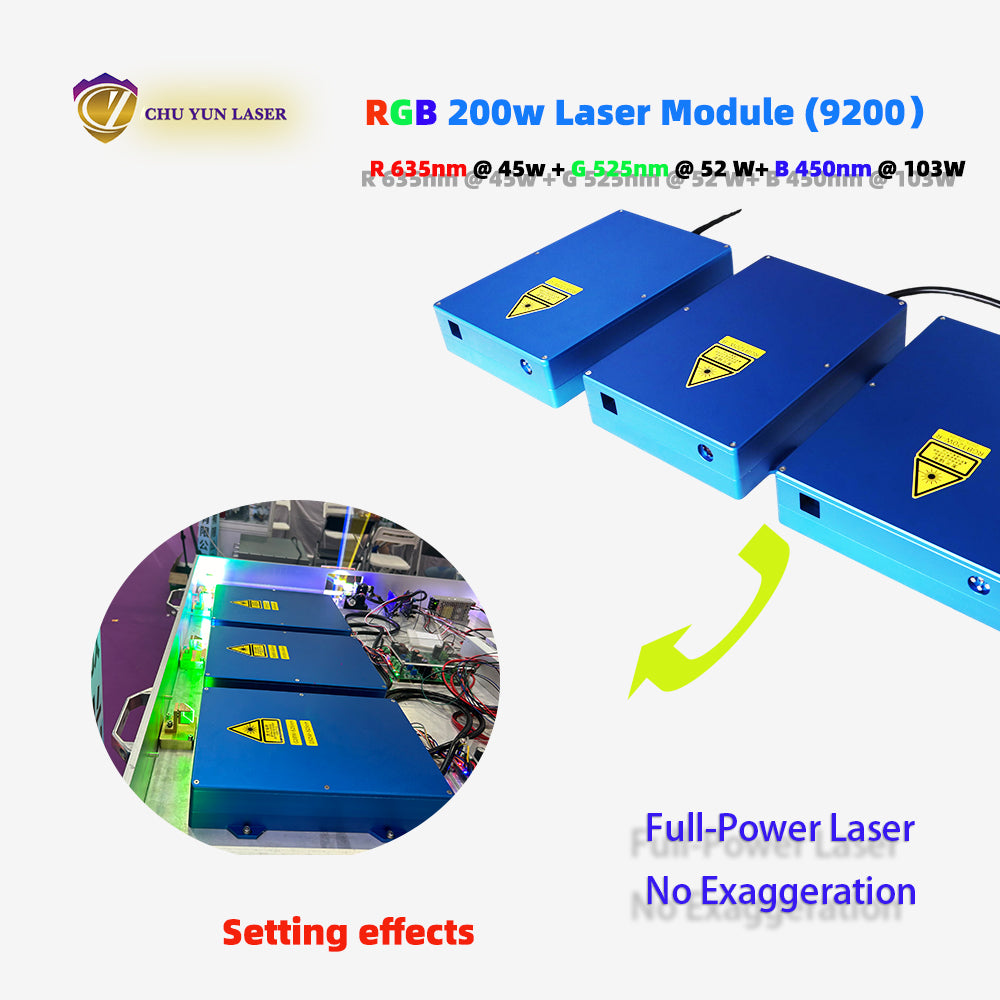

CY-9200-RGB200W 200w laser module

      CY-9200-RGB200W AC 110~230V 200w laser module with ttl & analogue modulation with TEC cooling for laser show laser projector

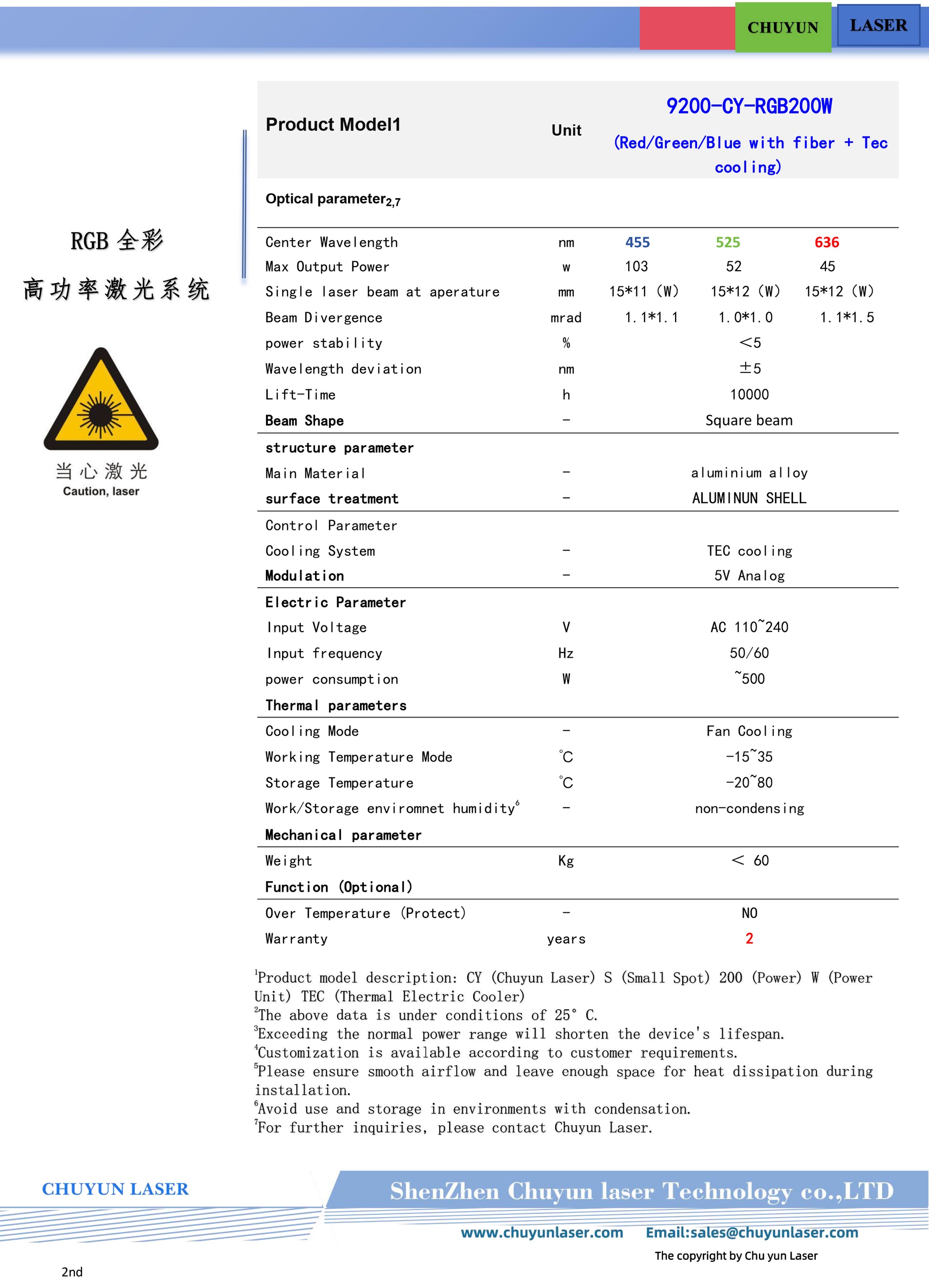

Specifications :

                                                              R         G          B

Wavelength (nm)   ：                         638±5   525±5   450±5

Output power (W)    ：                         45        52        103

Beam diameter at the aperture (mm) ： 4×6     2×6   2×6

Beam divergence, full angle (mrad)   ：  <1.5

Operating mode :   CW

Power stability     ：   <5%1

Modulation ：    TTL/Analog

Warm-up time (minutes) ﹤5

Operating temperature (℃) -10～40

Cooling mode  ：  Fan

Expected lifetime ：10000 hours

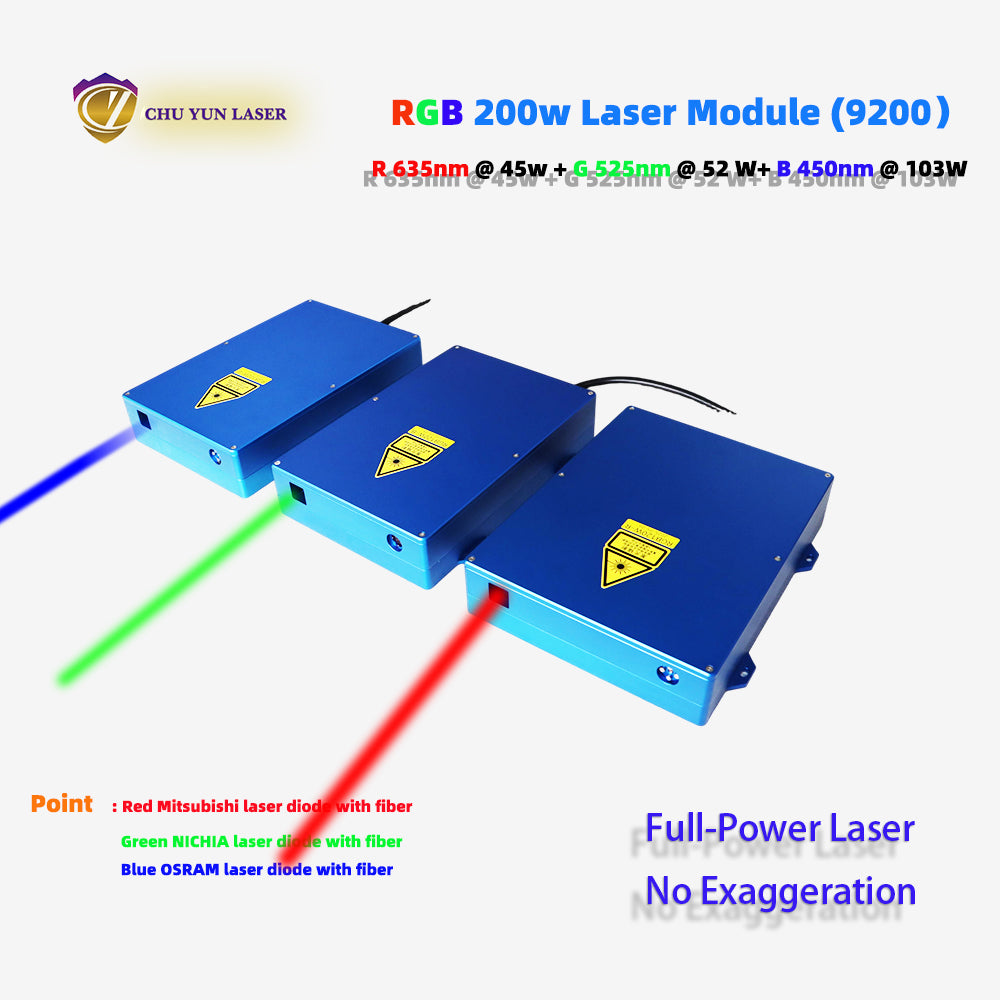

Red 638nm  Mitusubish with Fiber compress

Green 520nm Nichia  with Fiber compress

Blue 455nm Nichia with Fiber Compress

Why the laser needs tec cooling , its more good for cooling and more long lift-time .

All our laser module accepted customized ， feel free contact with us !

Packing List :

1. laser head + drive * 1 pc s

2. Modualtion Line : 3 pcs

3. Driver Line : 3 pcs
