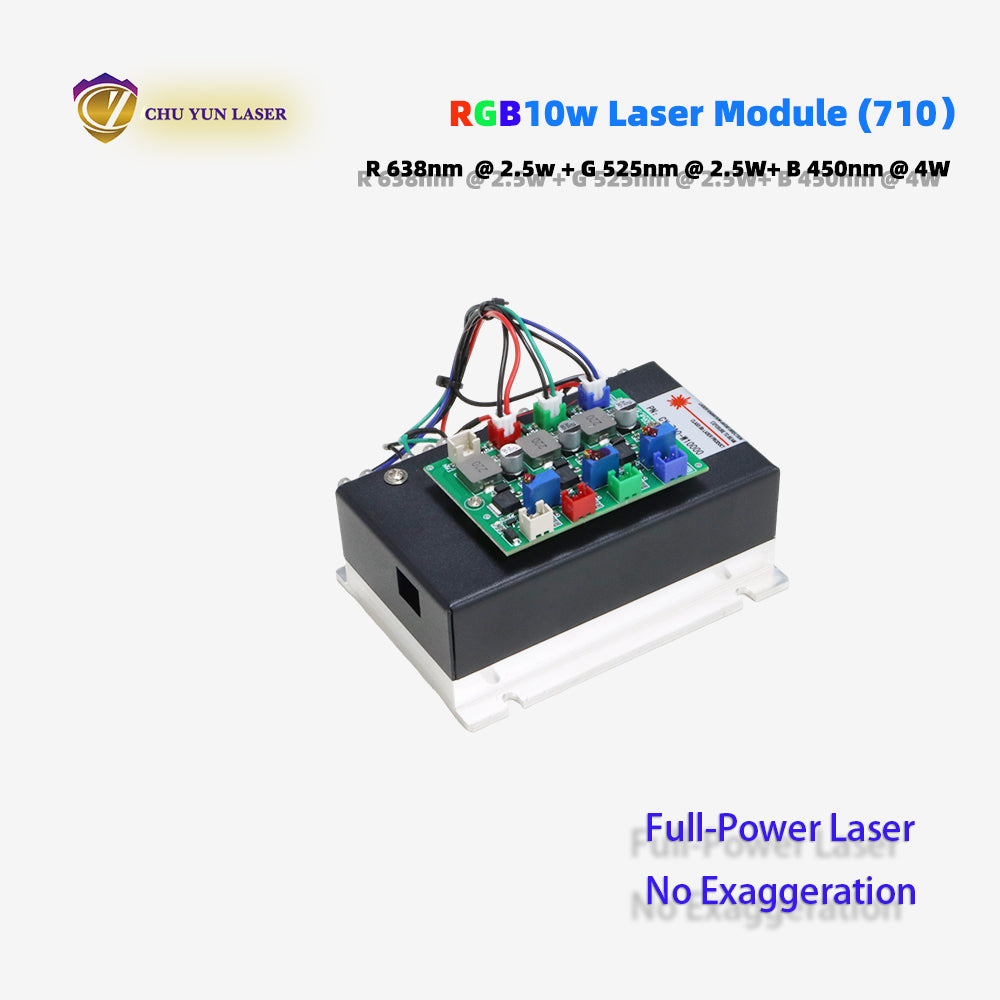

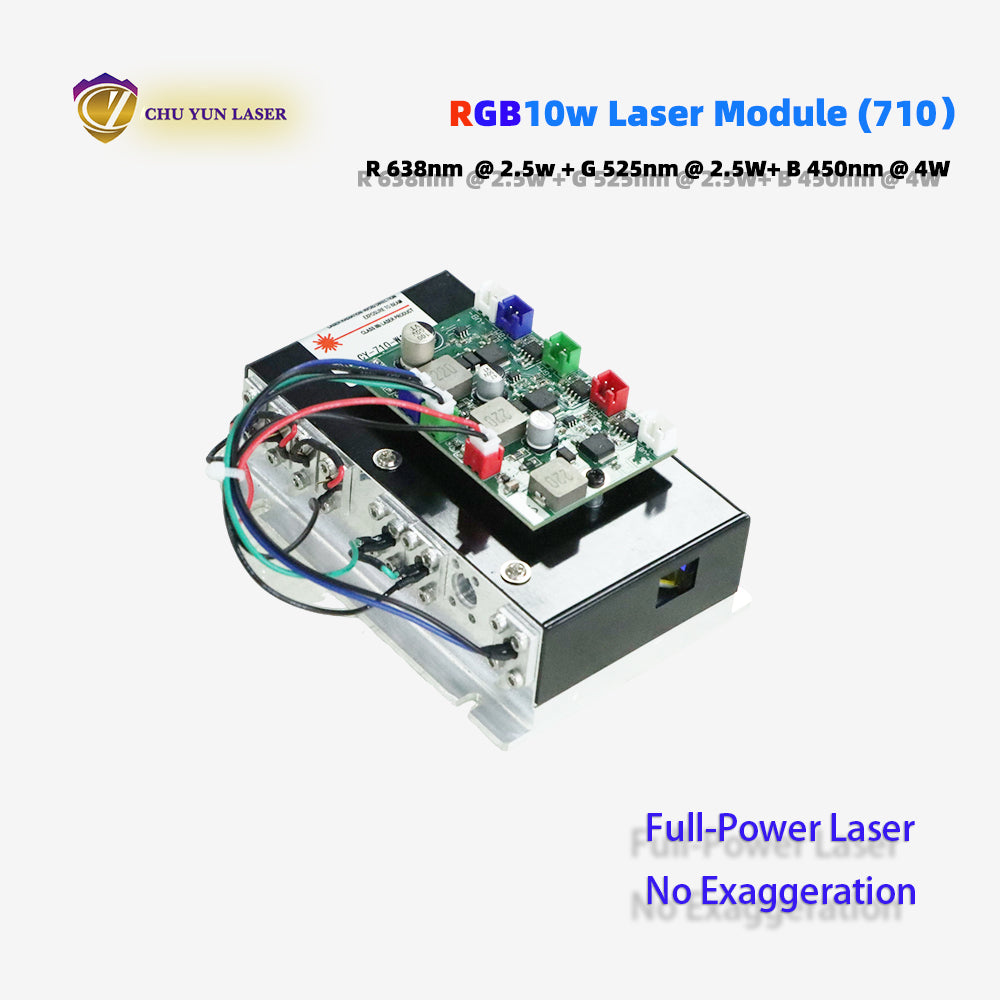

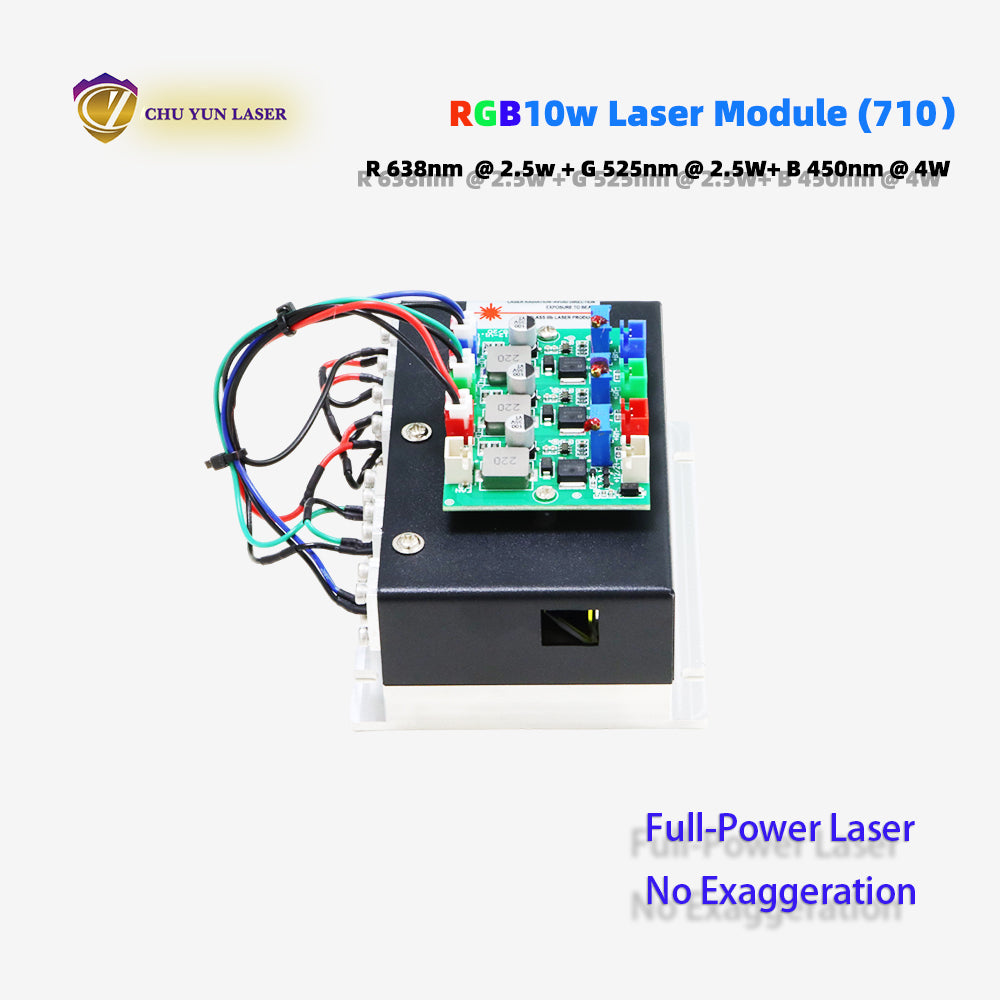

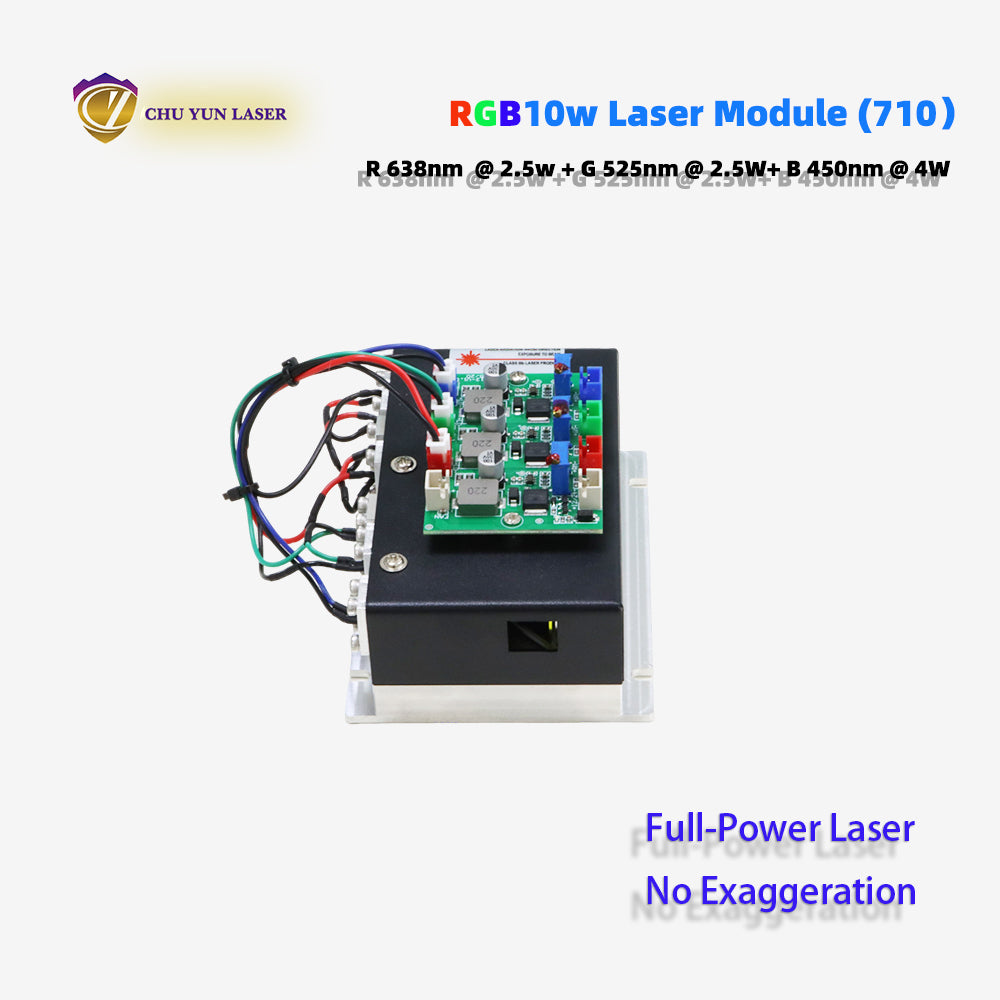

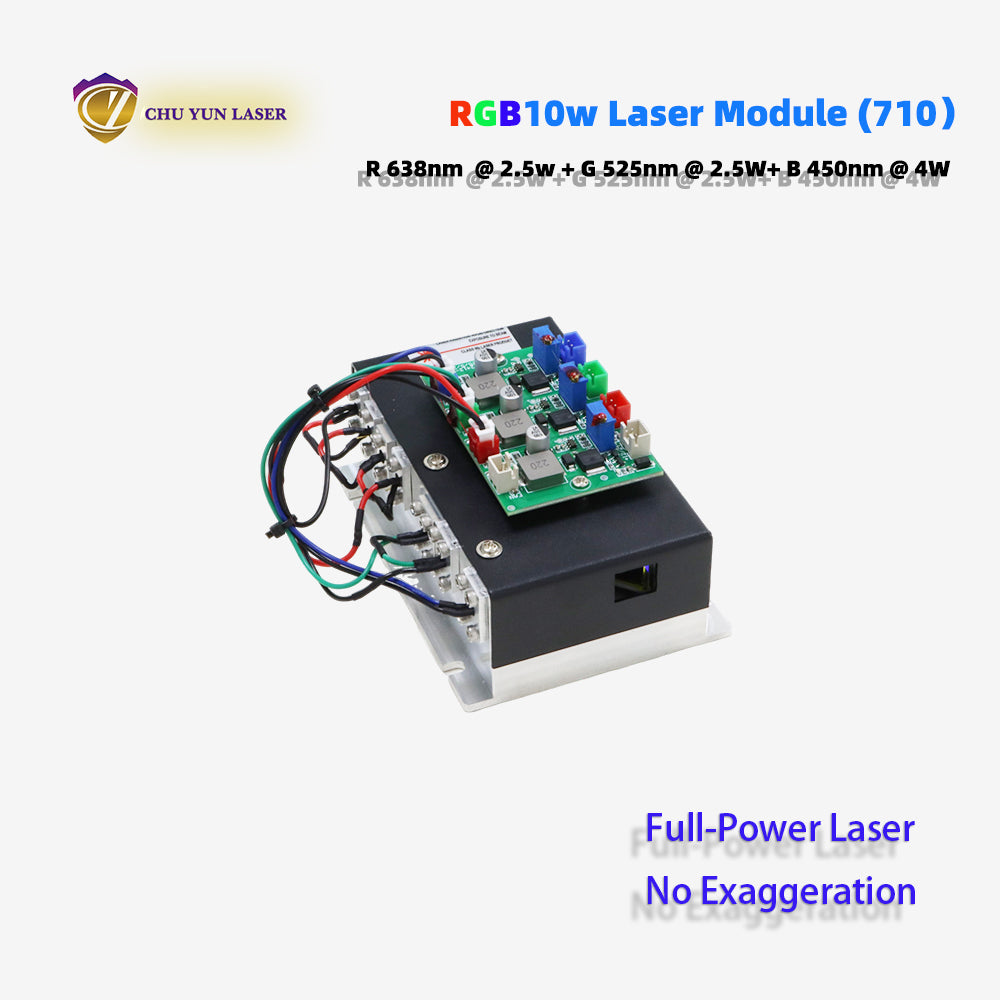

710-rgb10w10w laser module with ttl & analogue modulation for laser show in festival laser source

Features:

710-rgb10w10w laser module with ttl & analogue modulation for laser show in festival laser source

Specifications :

                                                              R         G          B

Wavelength (nm)   ：                        638±5   525±5   450±5

Output power (W)    ：                         2.4        2.8        4.0

Beam diameter at the aperture (mm) ： 5×6     2×6   2×6

Beam divergence, full angle (mrad)   ：  <1.5

Operating mode :   CW

Power stability     ：   <5%

Modulation ：    TTL/Analog

Warm-up time (minutes) ﹤5

Operating temperature (℃) -10～40

Cooling mode  ：  Fan

Expected lifetime ：10000 hours

Notice : This one without TEC cooling , if needs rgb10w tec cooling laser , contact with us !

All our laser module accepted customized ， feel free contact with us !

Packing List :

1. laser head + drive * 1 pc s

2. Modualtion Line : 3 pcs

3. Driver Line : 3 pcs
